Four drydocks + Floating Pier

Purpose built infrastructure for fast, efficient drydocking – from harbour tugs to large commercial vessels.

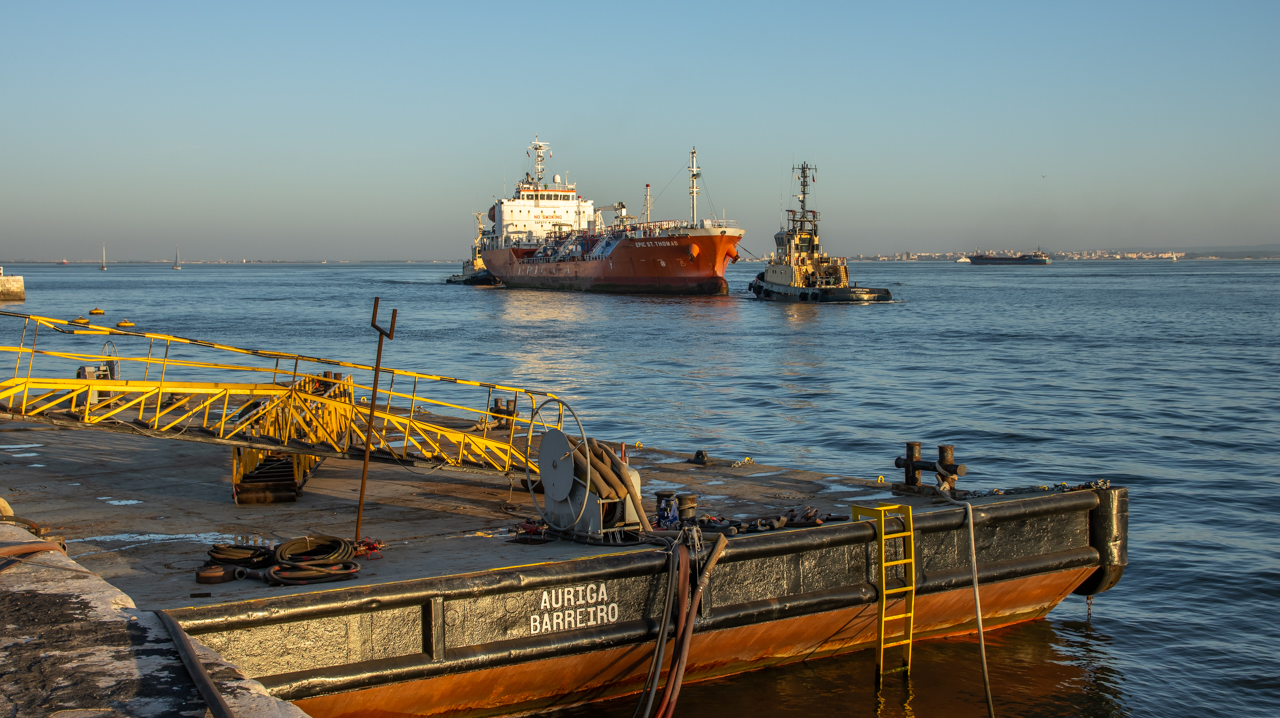

Floating Pier
Pier side vessels up to 140m in length.

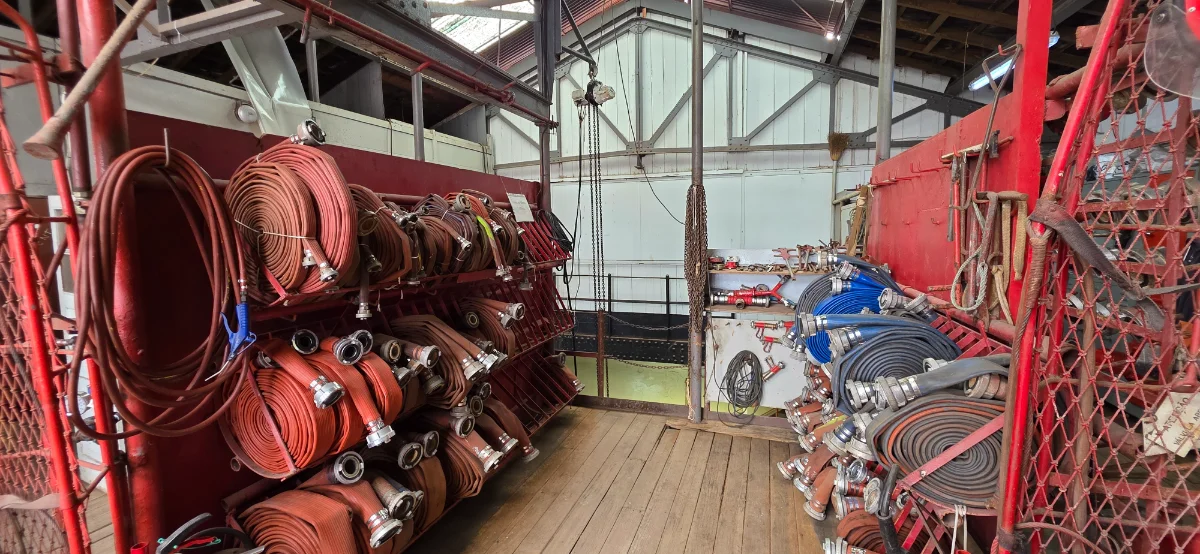

Fire Station
Fully equipped fire house with permanent assistance on hand.

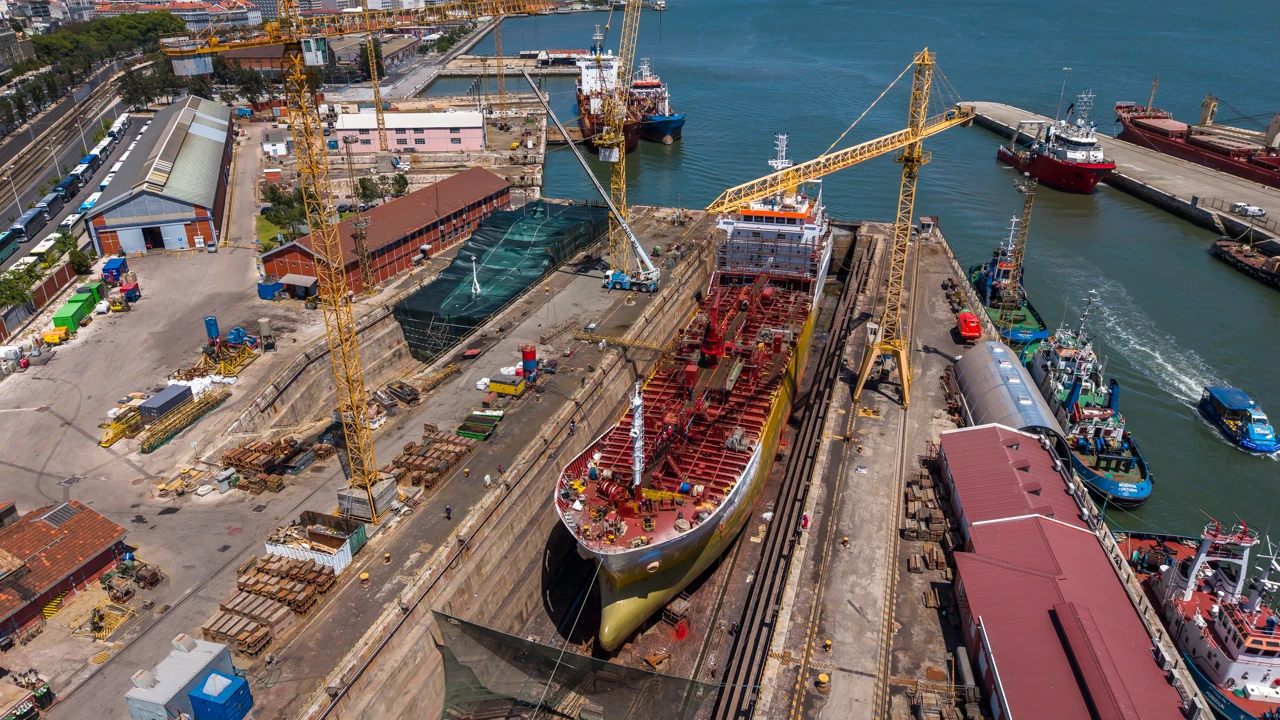

Dock 1
Our main drydock available for all types of vessels, 173.5m length, entrance 22.1m and a max. draft of 7.6m.

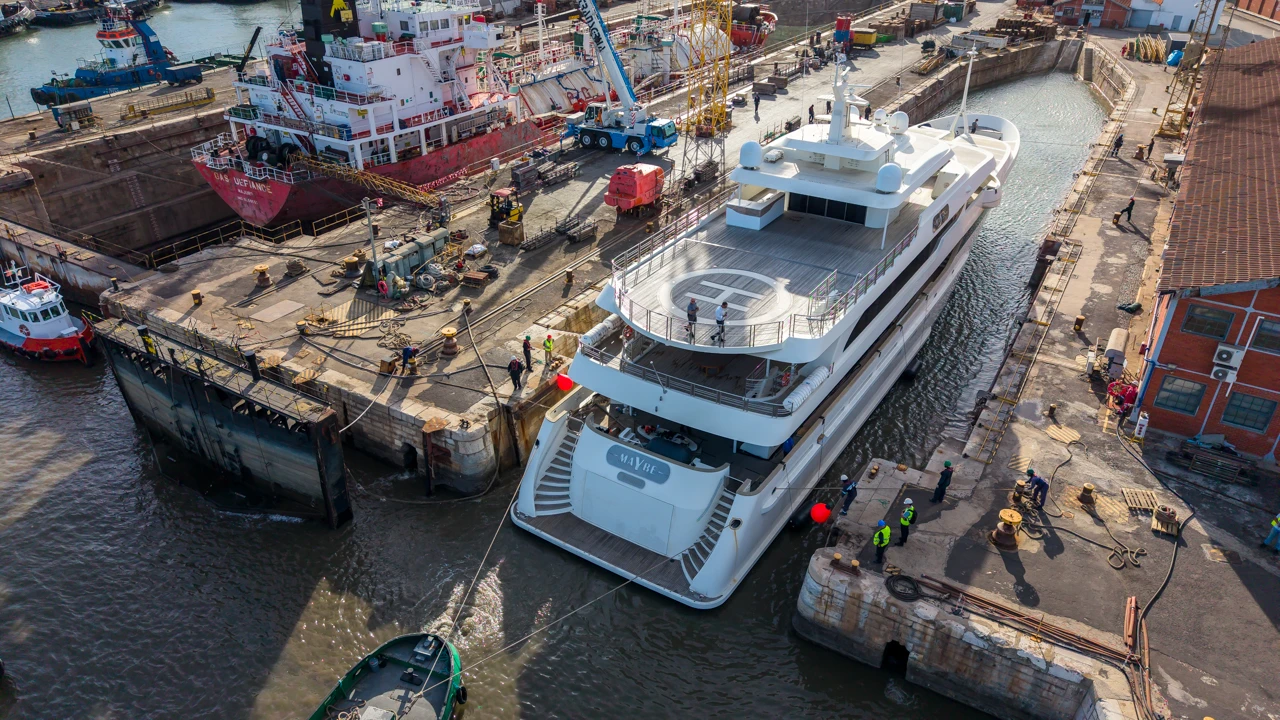

Dock 2
Mid-size repairs, Length 104m, entrance 12.4m and a max. draft of 5.5m

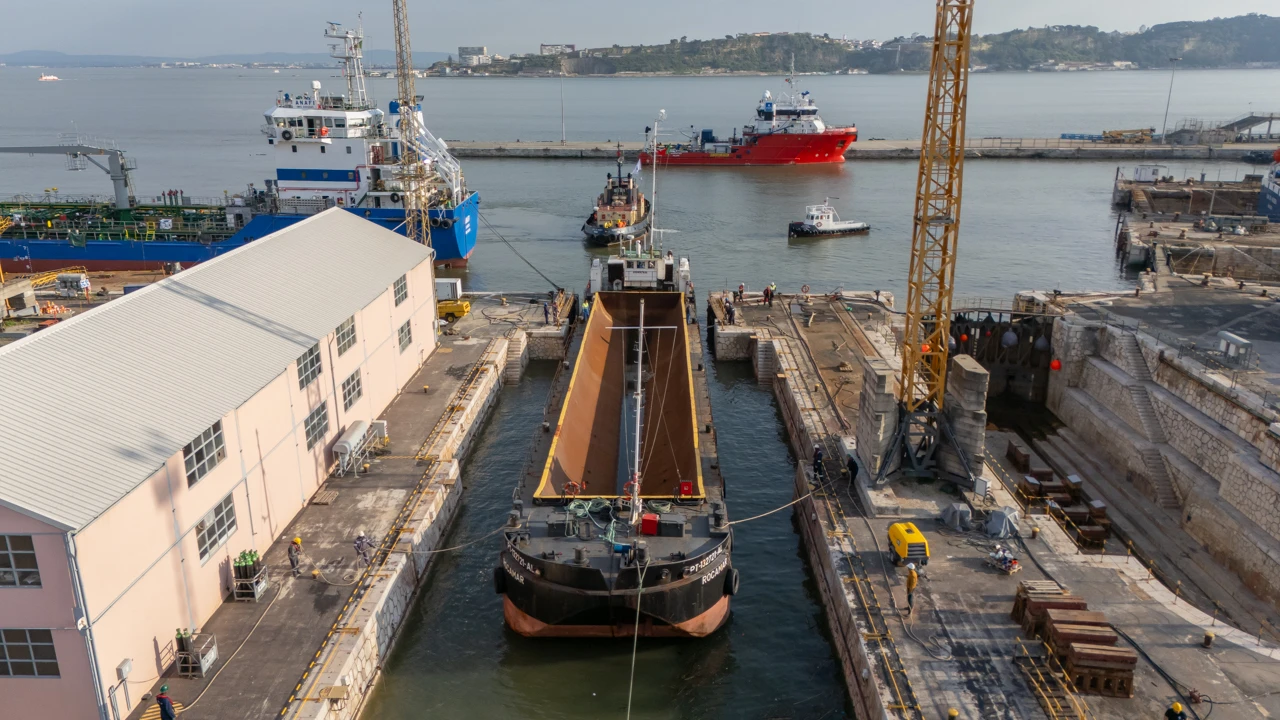

Dock 3
Ideal for Workboats, barges, sailing vessels, Length 63.8mm entrance 12m.

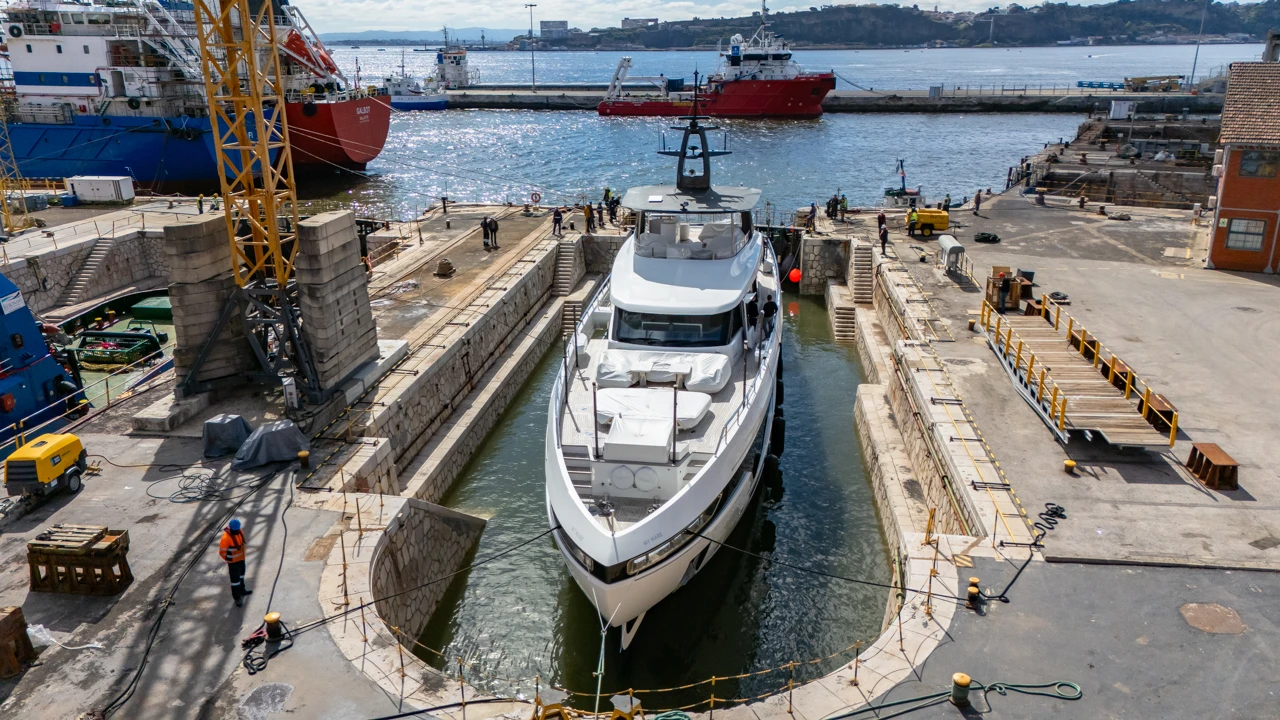

Dock 4
Workboats, sailing vessels, motor craft. Length 48.2m, entrance 11m.

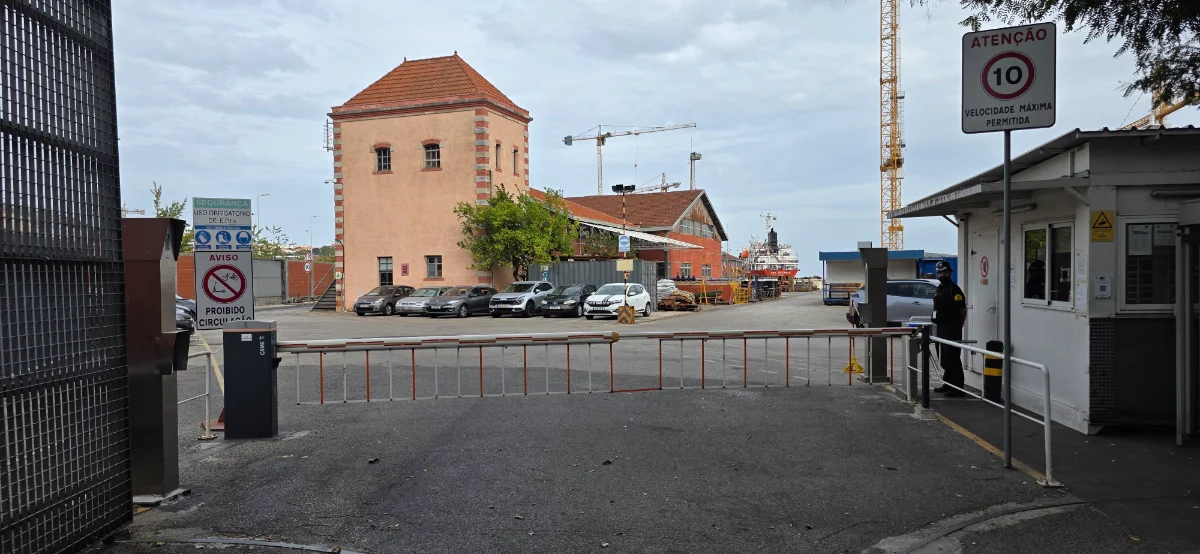

Security Gate
Entrance to Navalrocha. AAZI/GNR authorization required.
Visitors Car Park
Main area for visitors to the yard. EPI´s are necessary at all times.

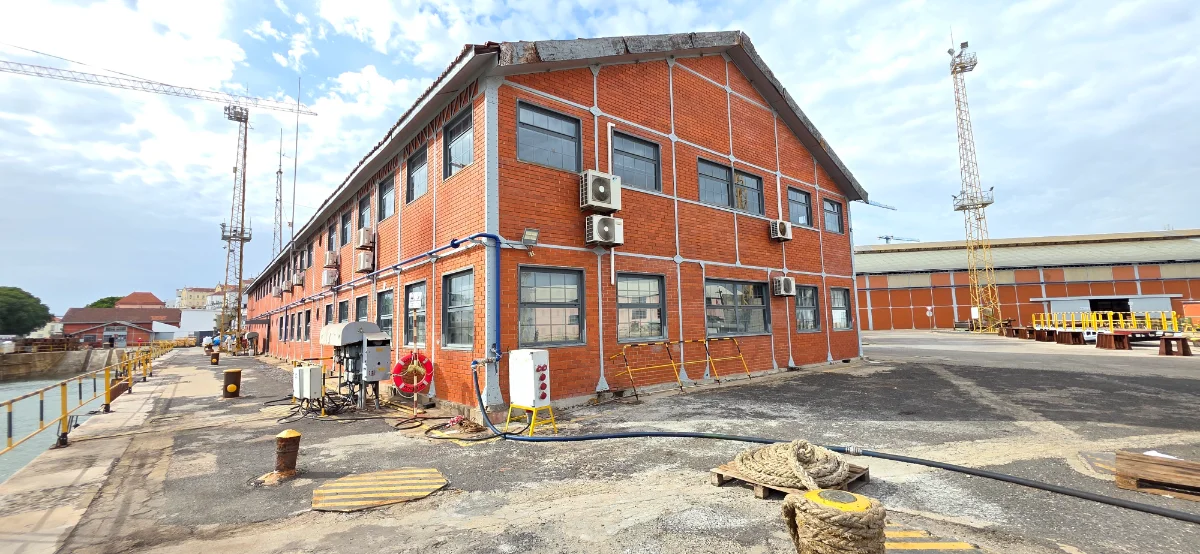

Administration
The Administration building houses the following, offices, canteen with vending machines, bathrooms

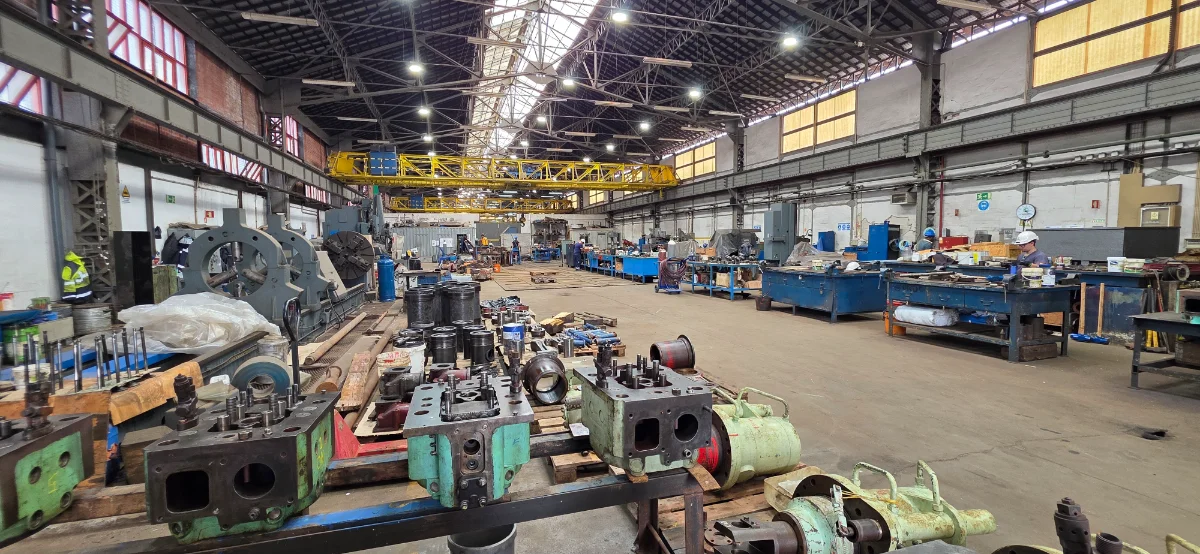

Mechanical Workshop
From routine maintenance to complex machinery repairs, Navalrocha provides comprehensive mechanical services focused on reliability, performance and minimum vessel downtime.
Steelwork
Steel structures and components can be prefabricated in our workshops before installation on board, helping to optimise project schedules and minimise vessel downtime.

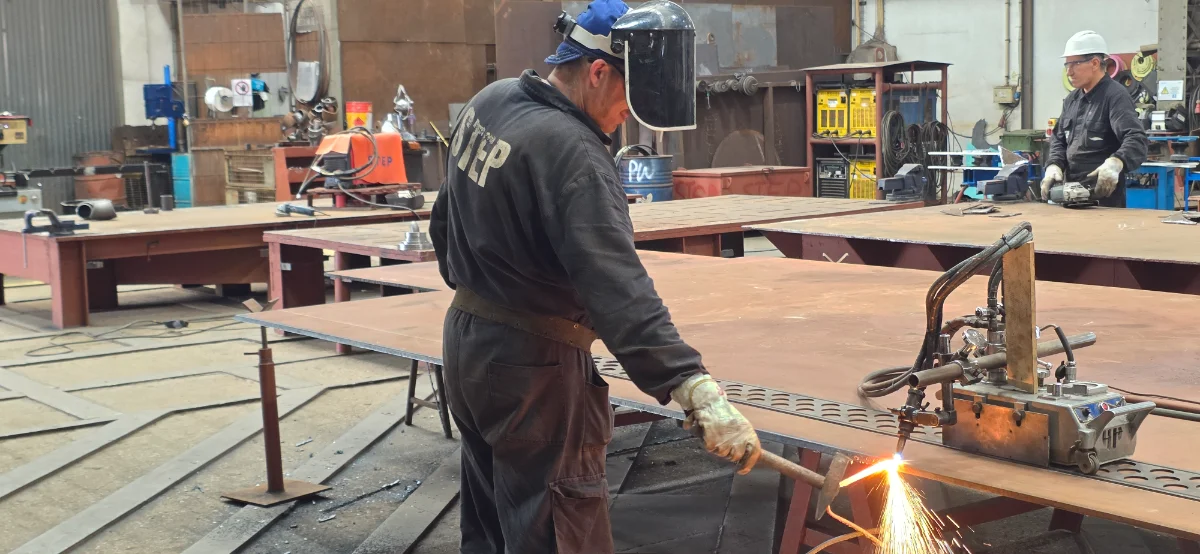

Piping / Steel Workshop
Fabrication, installation and testing are carefully coordinated with the vessel’s operational requirements and applicable Class standards, ensuring reliable solutions and efficient project execution.
